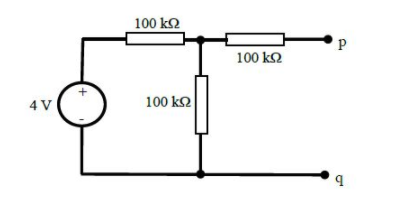

The Thevenin equivalent circuit representation across terminals p – q of the circuit shown in  the figure is a



  1. 1 V source in series with 150k$\Omega$
  2. 1 V source in parallel with 100k$\Omega$
  3. 2 V source in series with 150k$\Omega$
  4. 2 V source in parallel with 200k$\Omega$
