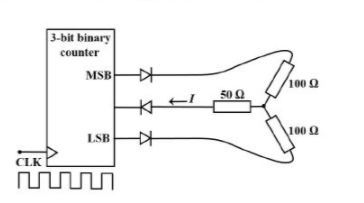

For the 3-bit binary counter shown in the figure, the output increments at every positive transition in the clock(CLK). Assume ideal diodes and the starting state of the counter as 000. If output high is 1 V and output low is 0 V, the current I(in mA) flowing through the 50 $\Omega$ resistor during the 5$^{th}$ clock cycle is(up to one decimal place) $\_\_\_\_\_\_$



retagged by

Please log in or register to answer this question.

Answer:
