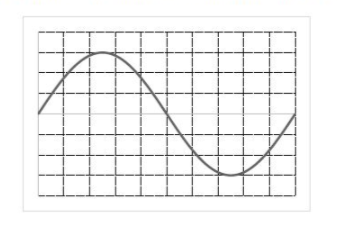

A voltage of 6 cos(100$\pi$t) V is fed as y-input to a CRO. The waveform seen on the screen of the CRO is shown in the figure. The Y and X axes settings for the CRO are respectively
- 1 V/div and 1 ms/div
- 1 V/div and 2 ms/div
- 2 V/div and 1 ms/div
- 2 V/div and 2 ms/div
