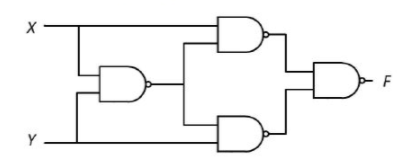

0 votes 0 votes The Boolean function $F(X, Y)$ realized by the given circuit is $\overline{X} Y + X \overline{Y}$ $\overline{X} \;\overline{Y}+ X Y$ $X + Y$ $\overline{X}\cdot \overline{Y}$ Digital Electronics gate2018-in digital-electronics combinational-circuits logic-gates + – gatecse asked Feb 20, 2018 • recategorized Mar 20, 2021 by Lakshman Bhaiya gatecse 1.4k points answer See all 0 reply
