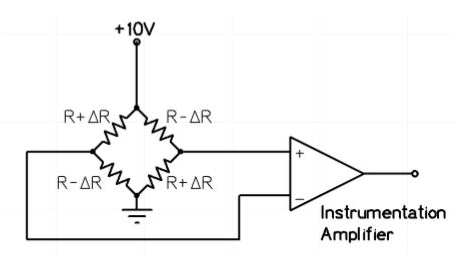

Four strain gauges in a Wheatstone bridge configuration are connected to an instrumentation amplifier as shown in the figure. From the choices given below, the preferred value for the common mode rejection ratio(CMRR) of the amplifier, in dB, would be
- -20
- 0
- 3
- 100
