GATE2020: 11

Question

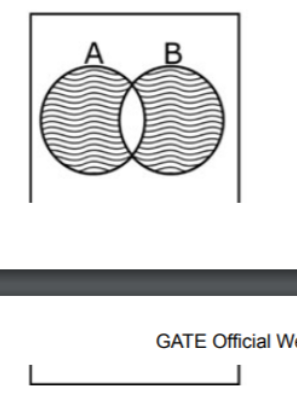

The boolean expression for the shaded regions as shown in the figure is _________

• A. $(A+B)\bullet (\overline{A}+\overline{B})$
• B. $(A+\overline{B})\bullet (\overline{A}+B)$
• C. $(\overline{A}+B)\bullet (\overline{A}+\overline{B})$
• D. $(\overline{A}+\overline{B})\bullet (A+\overline{B})$
