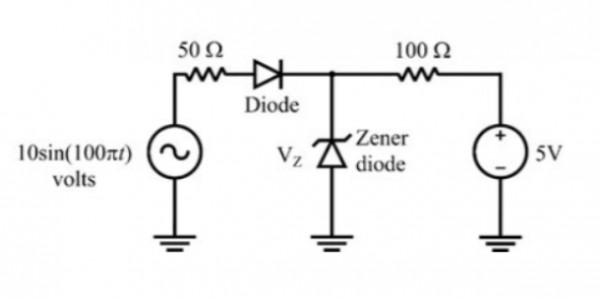

0 votes 0 votes If the diodes in the circuit shown are ideal and the breakdown voltage $V_z$ of the Zener diode is $5\;V$ the power dissipated in the $100\;\Omega$ resistor (in watts) is __________. $0$ $1$ $25/100$ $225/100$ Others gate2020-in + – soujanyareddy13 asked Nov 3, 2020 • recategorized Nov 25, 2020 by soujanyareddy13 soujanyareddy13 2.7k points answer See all 0 reply
