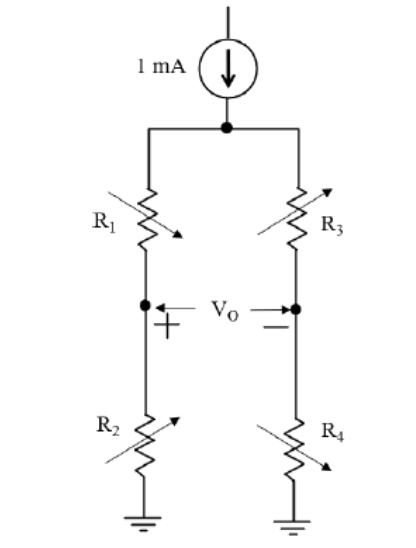

For the full bridge made of linear strain gages with gage factor $2$ as shown in the diagram, $R_{1}=R_{2}=R_{3}=R_{4}=100 \:\Omega$ at $0^{\circ}C$ and strain is $0$. The temperature coefficient of resistance of the strain gages used is $0.005\: per\: ^{\circ}C$. All strain gages are made of same material and exposed to same temperature. While measuring a strain of $0.01$ at a temperature of $50^{\circ}C$, the output $V_{O}$ in millivolt is _______________ (rounded off to two decimal places).



edited by

Please log in or register to answer this question.

Answer:
