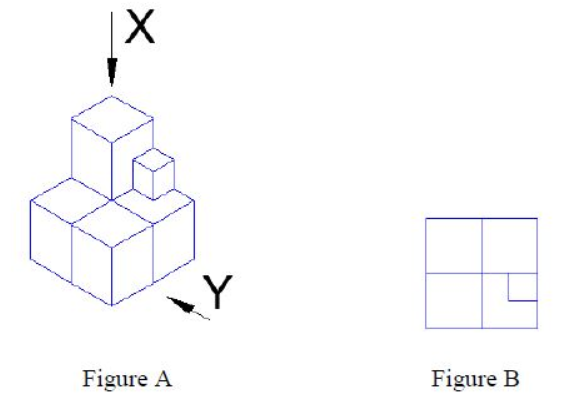

Five cubes of identical size and another smaller cube are assembled as shown in Figure A. If viewed from direction $X$, the planar image of the assembly appears as Figure B.

If viewed from direction $Y$, the planar image of the assembly (Figure A) will appear as
