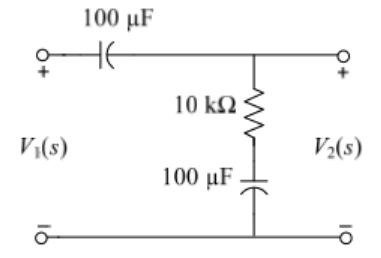

0 0 votes The transfer function $\frac{V_2(s)}{V_1(s)}$ of the circuit shown below is $\frac{0.5s+1}{s+1}$ $\frac{3s+6}{s+2}$ $\frac{s+2}{s+1}$ $\frac{s+1}{s+2}$ Analog Electronics gate2013-in electrical-circuits-and-machines linear-system numerical-answers + – Milicevic3306 7.9k points answer 0 reply
