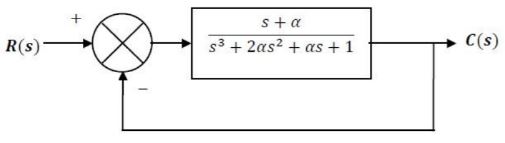

0 0 votes A closed-loop system is shown in the figure. The system parameter $\alpha$ is not known. The condition for asymptotic stability of the closed loop system is $\alpha<-0.5$ $-0.5<\alpha<0.5$ $0<\alpha<0.5$ $\alpha>0.5$ Control Systems gate2017-in control-systems + – soujanyareddy13 2.7k points answer 0 reply
