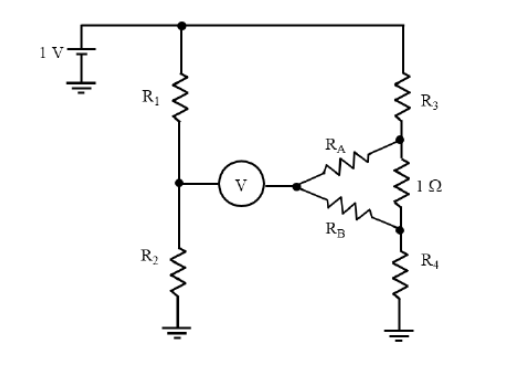

In the bridge circuit shown, the voltmeter $\text{V}$ showed zero when the value of the resistors are: $R_{1}=100\:\Omega$, $R_{2}=110\:\Omega$, and $R_{3}=90\:\Omega$. If $\left ( R_{1}/R_{2} \right )=\left ( R_{A}/R_{B} \right )$, the value of $R_{4}$ is ohm is ________.



edited by

Please log in or register to answer this question.

Answer:
