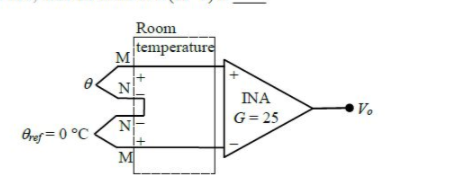

As shown in the figure, temperature $\theta$ is measured using a $K$ type thermocouple. It has a sensitivity of 40 $\mu V/^{\circ}C$. The gain $(G)$ of the ideal instrumentations amplifier is $25$. If the output $V_0$ is $96 \;mV,$ then the  value of  $\theta$(in $^{\circ}$C) is ______________.
